Axial Industry Air Extractor with mounting plate PVO 154/2, 500-550 m³ / h
Axial Industry Air Extractor with mounting plate PVO 154/2, 500-550 m³ / h
Regular price
€122,00 EUR
Regular price
Sale price
€122,00 EUR
Unit price
/
per
Share

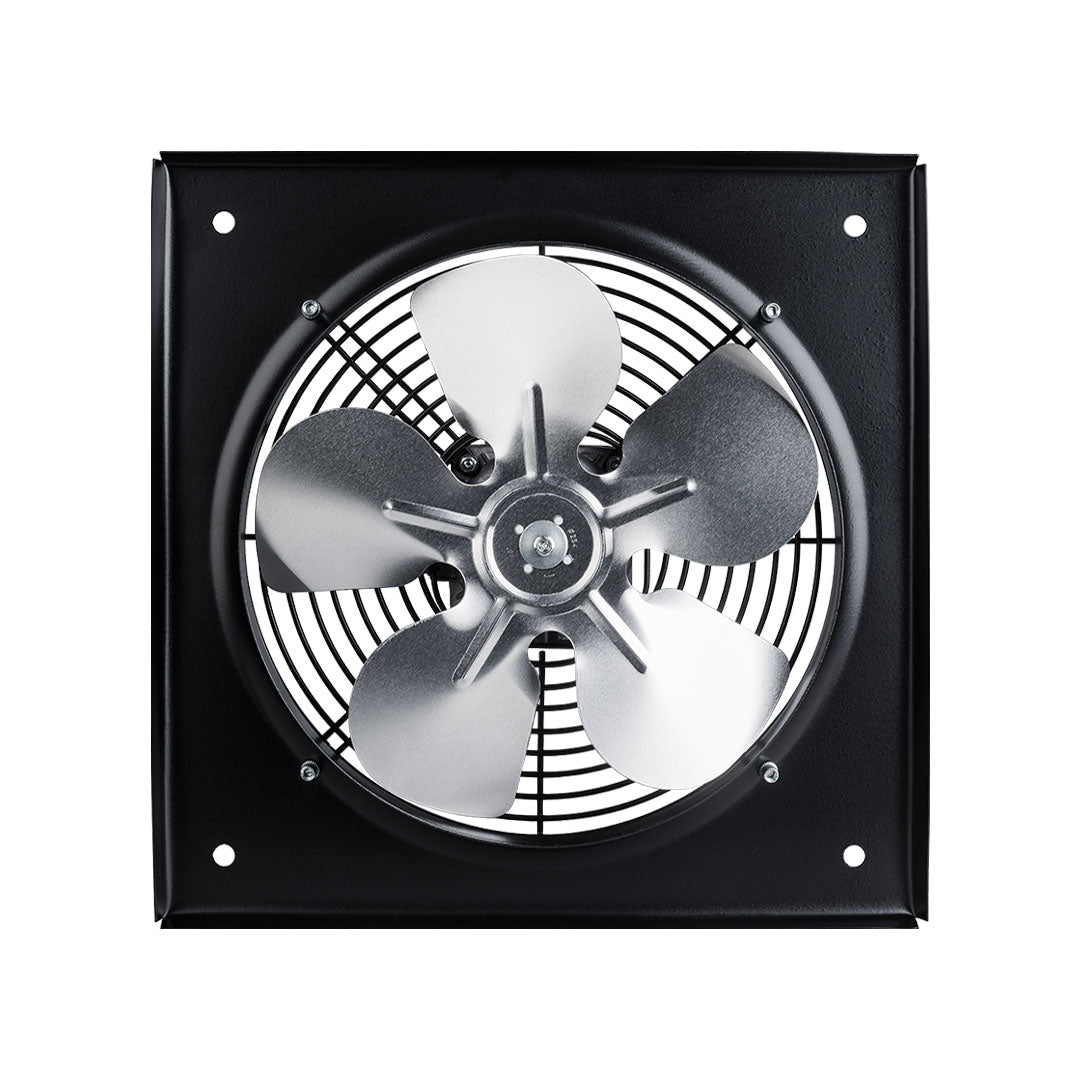

This axial fan is designed for continuous or intermittent ventilation of commercial, industrial, agricultural premises and all types of craft workshops, of medium and large sizes.
It is used under the conditions of normal fire hazard (in compliance with fire safety regulations for buildings and constructions) and can be installed on the walls, ceiling panels, etc.
They can be installed horizontal or vertical. The level of protection is IP 54, which will allow the fan to work not only in closed premises, but also outdoors, in increased humidity conditions.
According to special requests, the fans can be made to work in the opposite direction as well.
Specifications | |
---|---|

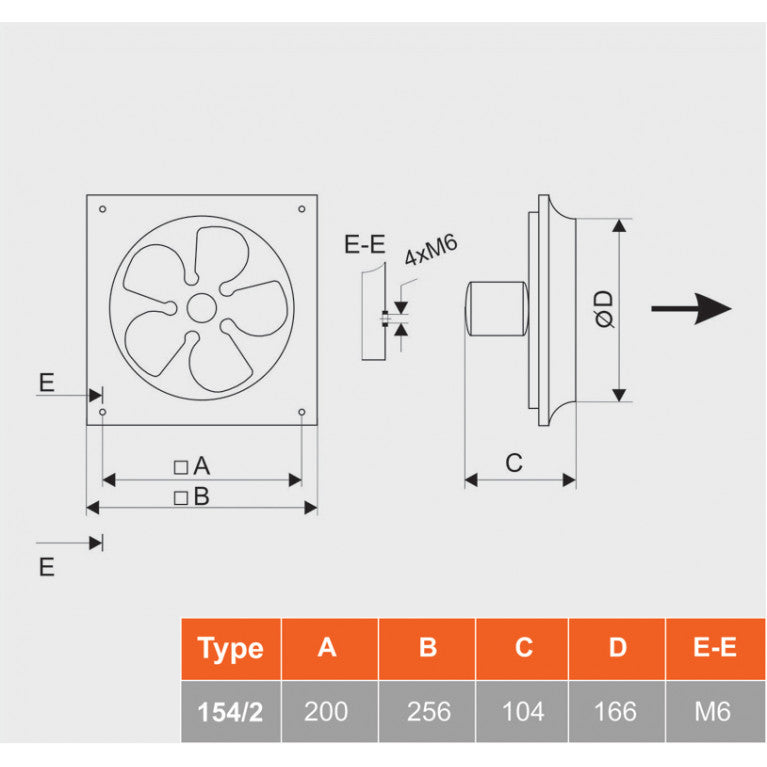

Size Diameter of the fan
|
166
|
Fans |
|
Information | |
Type |
Axial
|

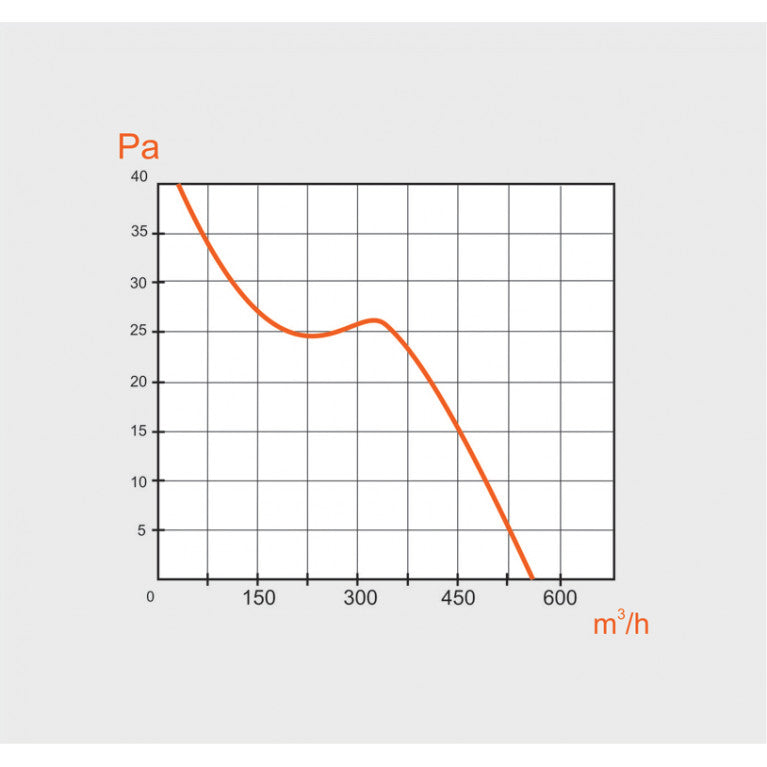

Airflow (m³/h) |
500÷550
|
Noise level (dB) |
-
|
Power Consumption (W) |
52
|
Voltage / Frequency (V/Hz) |
230
|
Maximum operating temperature (°C) |
80
|
Ingress Protection (IP) |
54
|
Warranty (years) |
5
|
