Heat-resistant axial fan VA T 12/2

• Heat resistant  (VA-T ) applicable to heating and ventilation systems with airflow’s maximum temperature up to 150°C.

 Designed for

• cooling of electronic control panels;

• ventilation of electrical panels;

• installation in electronics, appliance construction and automation;

• cooling of welding machines and plasma cutting machines;

• installation in cooling and ventilation systems and air-conditioning devices;

• This fan (VA-T) can be used in heat exchangers of fireplaces or other heating instillations.

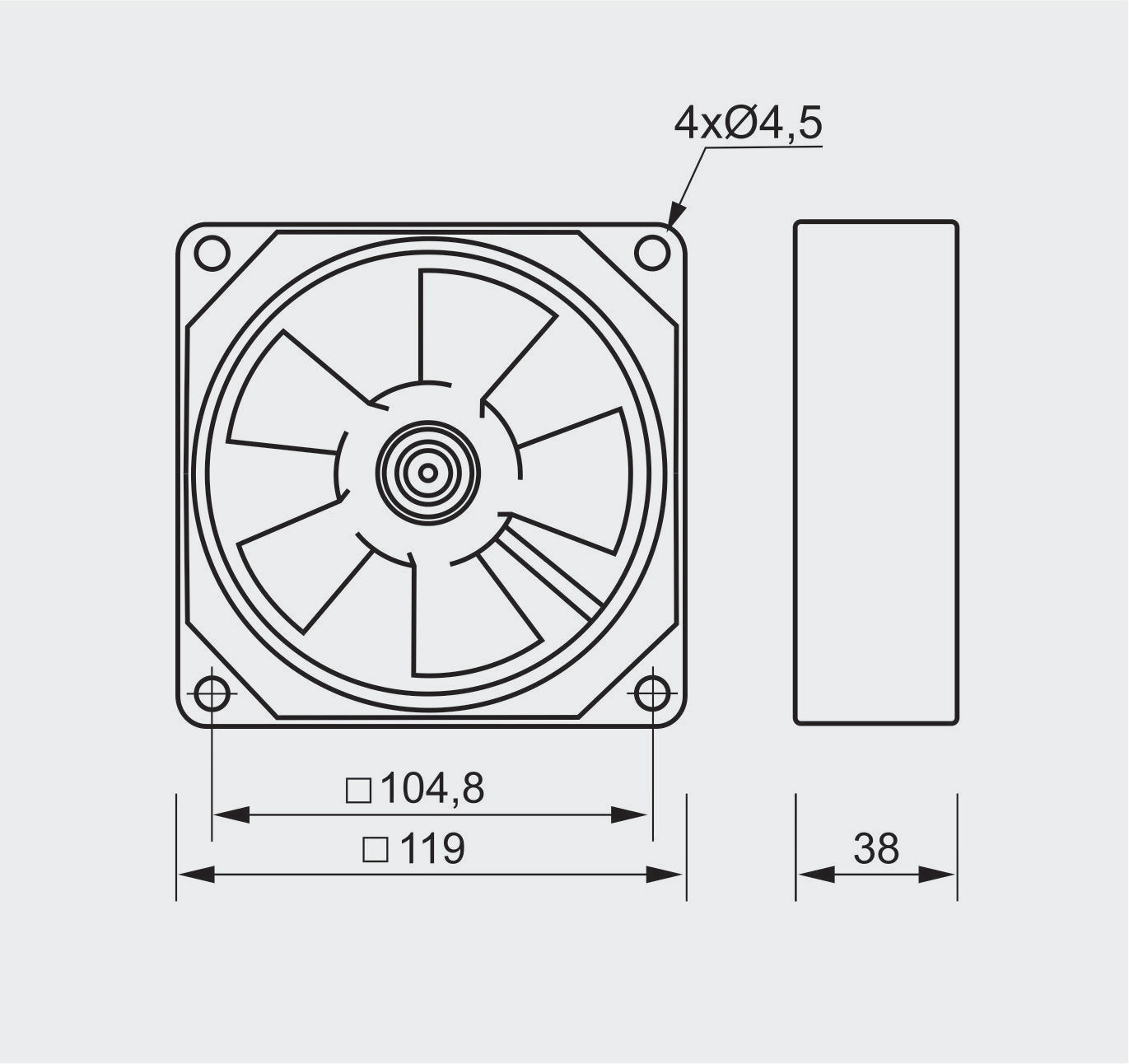

 The fans are equipped with a built-in silent electric motor with double-capsulated ball bearings which guarantee 30.000 hours of faultless operation when installed horizontally or vertically. The fan is square in shape with internally located fins to which the stator is attached.

 The body and the turbine are manufactured from aluminum alloy or Glass-filled Polyamide.

ATTENTION

• This fan (VA-T) is for extraction / distribution of hot air up to 150 Degrees Celsius. Please measure the working temperature before installing this unit.

• The fan (VA-T) is not suitable for extracting smoke from a burning fireplace where temperature of the smoke can reach up to 250 Degrees.
