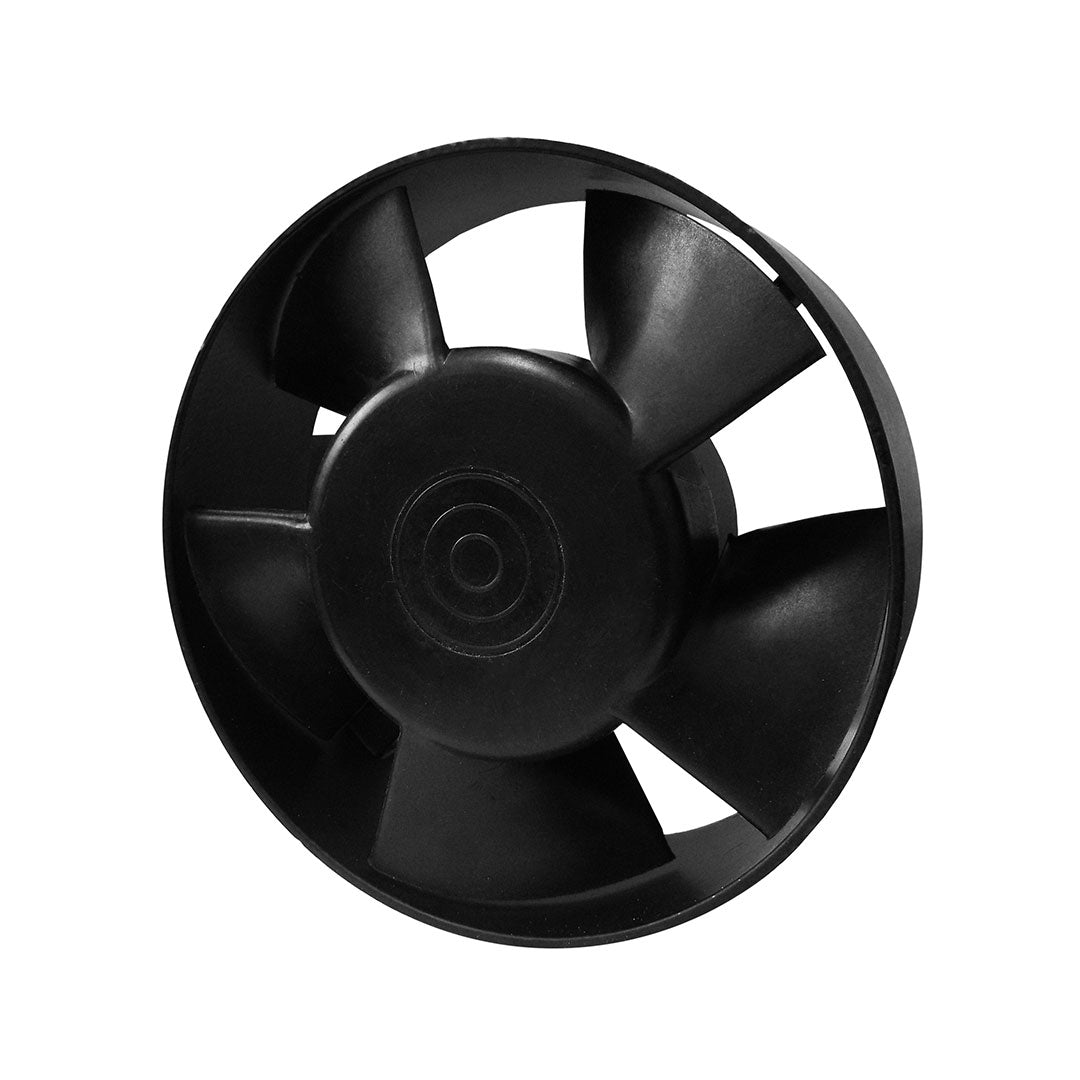

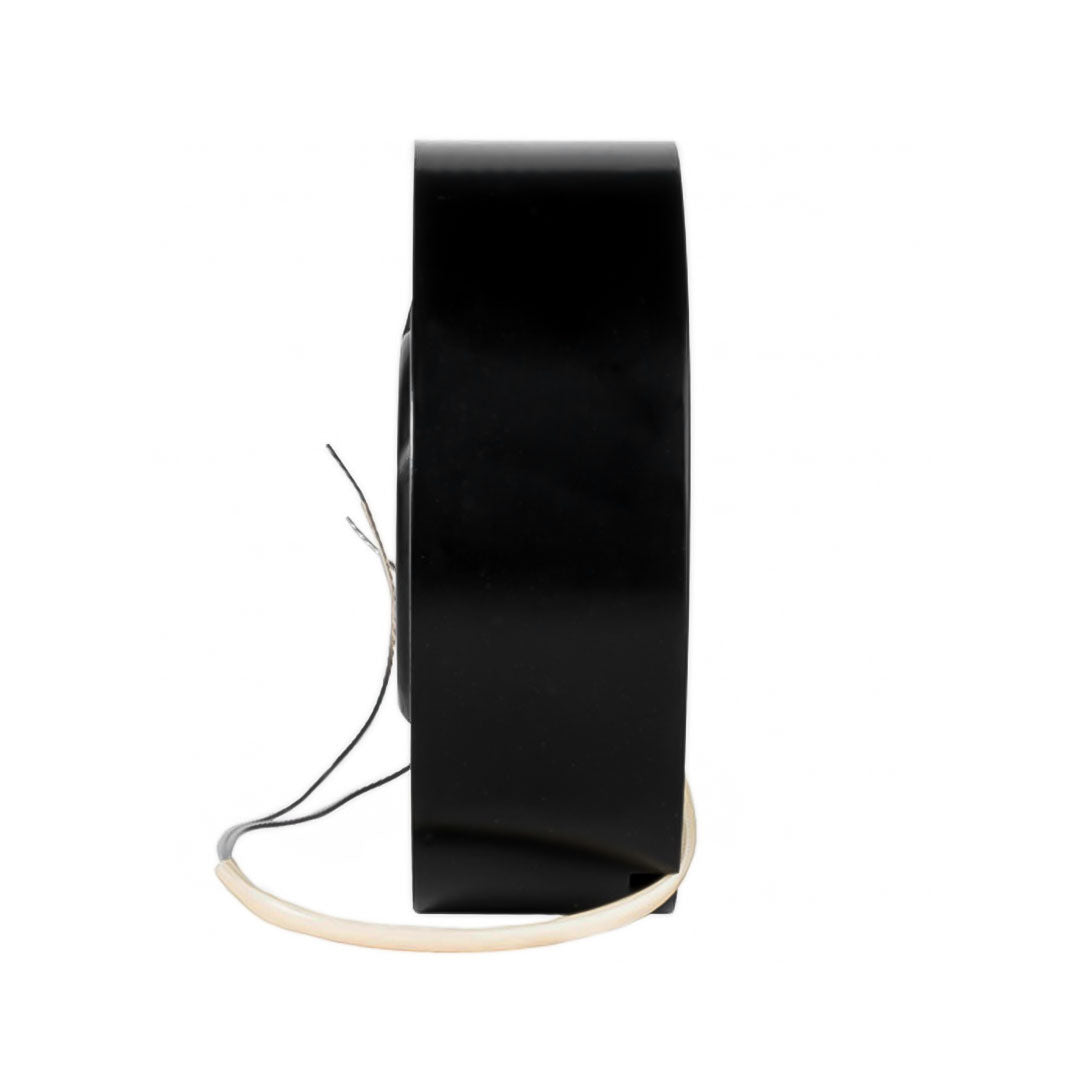

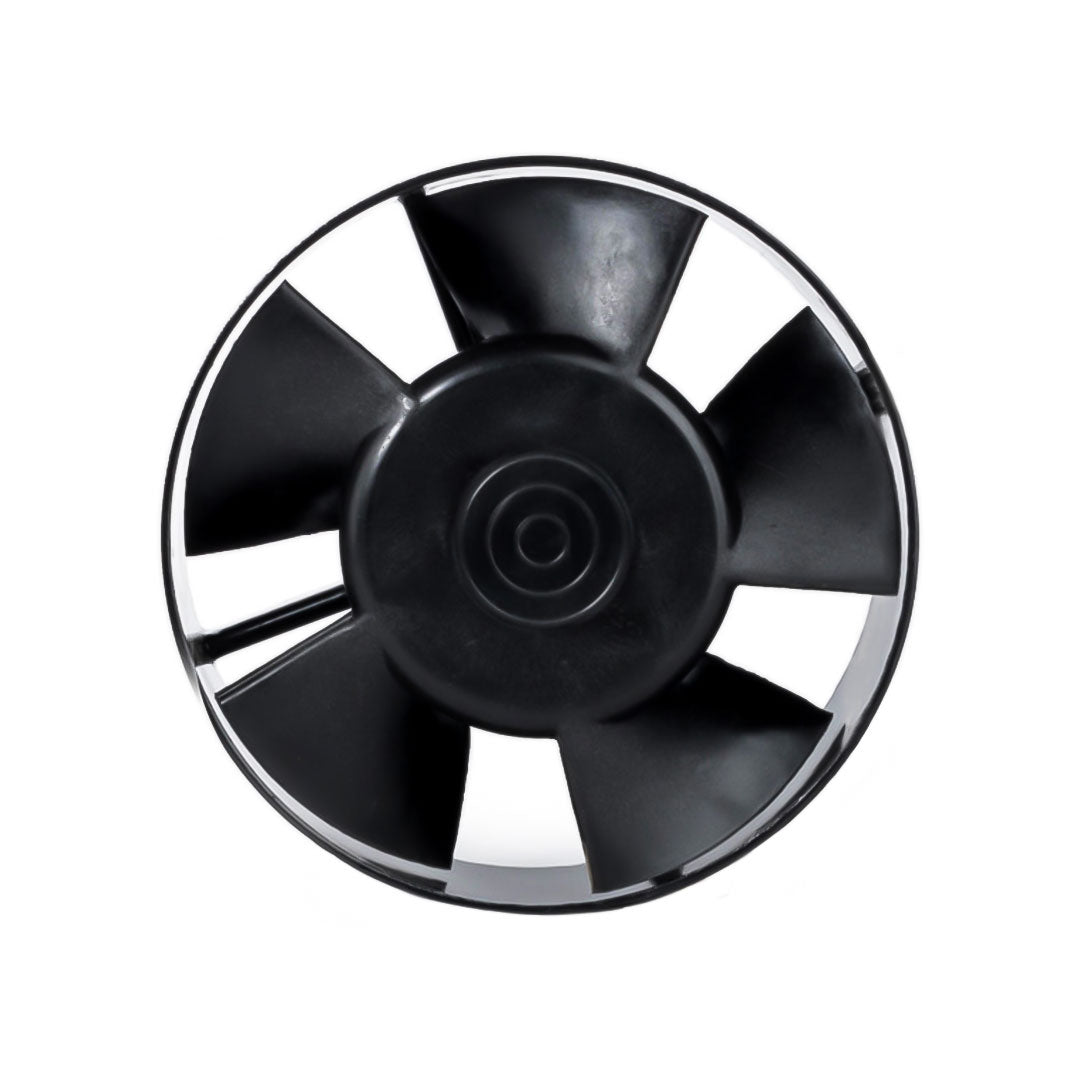

Heat-resistant duct fan VO T ⌀120mm
Heat-resistant duct fan VO T ⌀120mm
Share
Designed for installation in Ø90, Ø120, Ø135 and Ø150 air ducts for ventilation,
air conditioning and heating systems.
• Heat resistant (VO-T ) is applicable to heating and ventilation systems with airflow’s maximum temperature up to 150°C.
• This fan (VO-T) is for distribution of hot air up to 150 Degrees Celsius. Please measure the temperature of the flue before installing this unit.
• This fan (VO-T) can be used in heat exchangers of fireplaces or other heating instillations.
ATTENTION
• The fan (VO-T) is NOT suitable for extracting smoke from a burning fireplace where temperature of the smoke can reach up to 250 Degrees.
The fans are equipped with a built-in electric motor with double-capsulated ball bearings which guarantee 30.000 hours of faultless operation when installed horizontally or vertically.
The body and the turbine, are manufactured from aluminum alloy or Glass-filled Polyamide which guarantees efficient cooling and better fire safety.
Specifications | |
---|---|

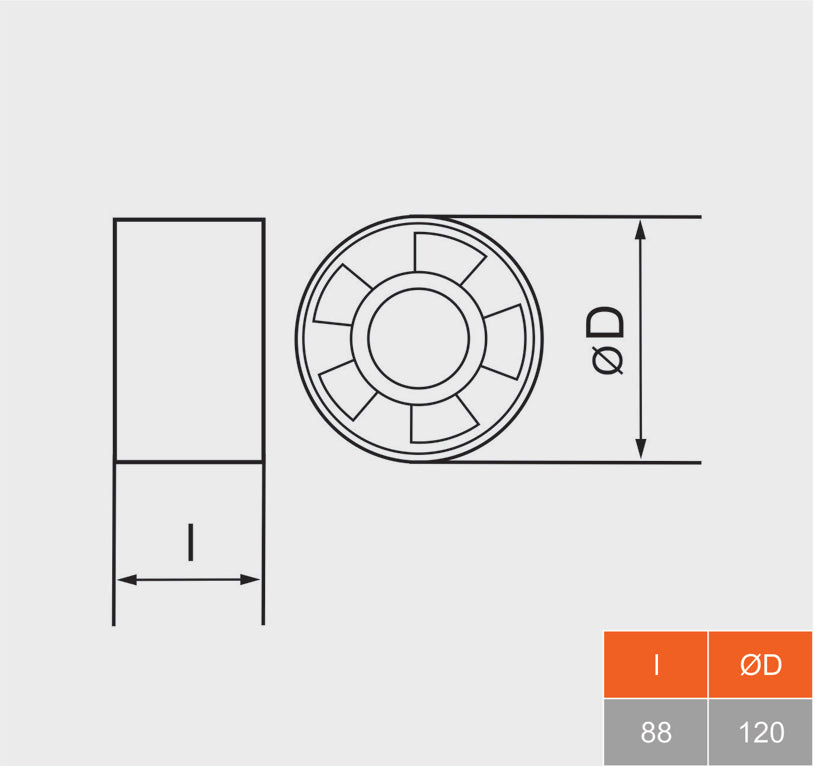

Size Diameter of the fan
|
120
|
Fans |
|
Information | |
Type |
Axial duct
|
Airflow (m³/h) |
150
|
Noise level (dB) |
39
|
Power Consumption (W) |
18
|
Voltage / Frequency (V/Hz) |
230
|
Maximum operating temperature (°C) |
150
|
Ingress Protection (IP) |
44
|
Warranty (years) |
5
|
