Heat-resistant duct fan VOK-T 150/⌀120mm, 240 m³ / h
Heat-resistant duct fan VOK-T 150/⌀120mm, 240 m³ / h
Impossible de charger la disponibilité du service de retrait
Share
• This fan (VOK-T) is for distribution of hot air up to 150 Degrees Celsius. Please measure the temperature of the flue before installing this unit.
• This fan (VOK-T) can be used in heat exchangers of fireplaces or other heating instillations.
ATTENTION
• The fan (VOK-T) is NOT suitable for extracting smoke from a burning fireplace where temperature of the smoke can reach up to 250 Degrees.
The fans are equipped with a built-in silent electric motor with double-capsulated ball bearings which guarantee 30.000 hours of faultless operation when installed horizontally or vertically.
The body, the turbine, and the back shutter are manufactured from aluminum alloy or Glass-filled Polyamide which guarantees efficient cooling and better fire safety.
| Specifications | |
|---|---|

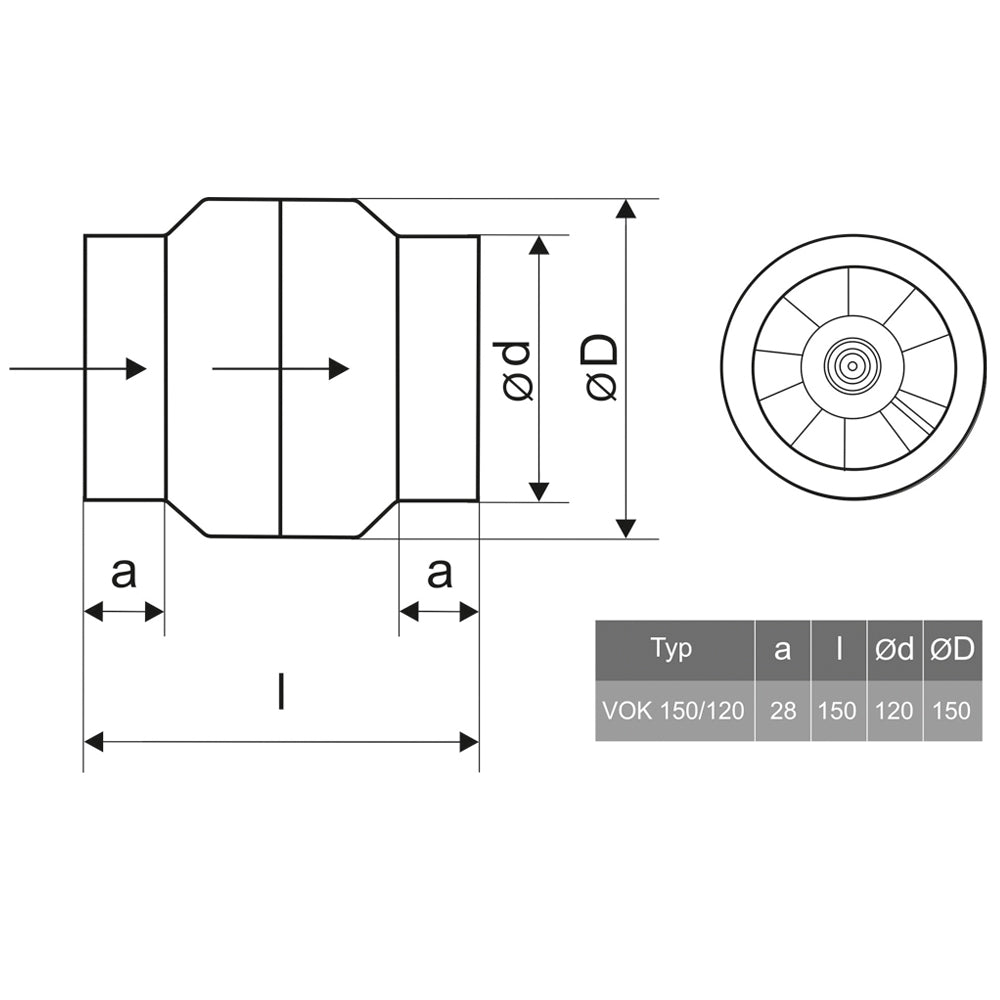

Size Diameter of the fan
|
120
|
Fans |
|
| Information | |
Type |
Axial duct
|
Airflow (m³/h) |
240
|
Noise level (dB) |
51
|
Power Consumption (W) |
46
|
Voltage / Frequency (V/Hz) |
230
|
Maximum operating temperature (°C) |
150
|
Ingress Protection (IP) |
44
|
Warranty (years) |
5
|
